380ton Made 32 Inch Cutter Suction Dredger with Underwater Pump and Cumins Diesel Engine

Model NO. : QHCSD-296

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 1 Year

After-sales Service : Lifelong

Hull Size : 35*10.2*2.7m

Output Pipe Diameter : 800mm

Maximum Dredging Depth : 18m

Water Flow : 9000m3

Capacity : 1350m3-1800m3

Maximum Discharge Distance : 1500m

Cutter Head Diameter : 2400mm

Cutter Power : 450kw

Total Weight : 380ton

Main Engine Power : 2427kw

Auxiliary Engine Power : 736kw

Diesel Engine Brand : Cumins

Total Fuel Consumption : 547L

Hydraulic Control System : Rexroth /Ward

Electric System : PLC and ABB

Transport Package : Canvas

Specification : 32inch water flow 9000m3

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 4600.00cm * 1002.00cm * 270.00cm

Package Gross Weight : 360000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 3000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

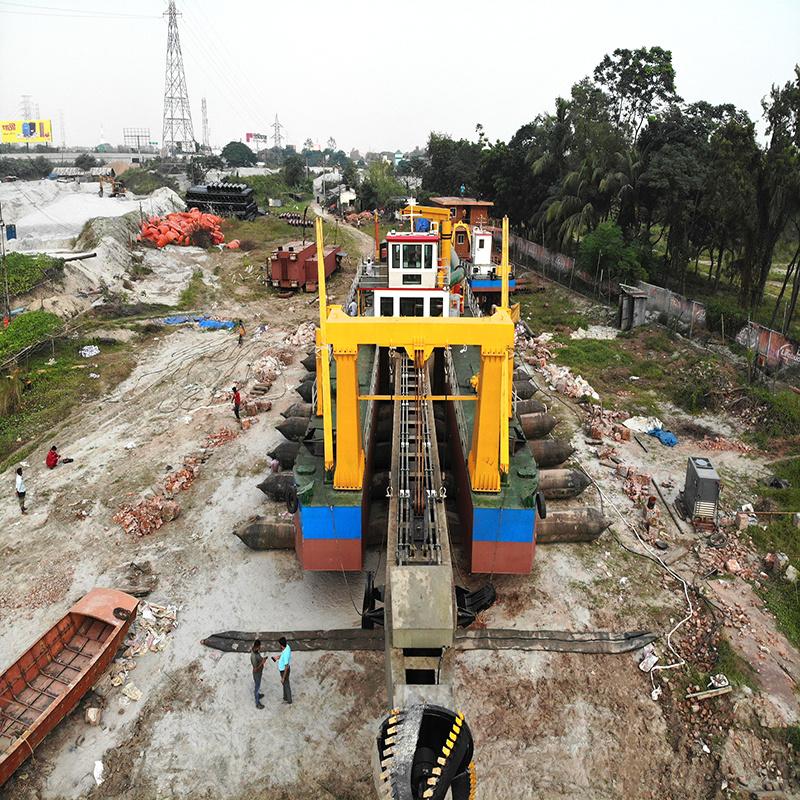

China made 32 inch cutter suction dredger with underwater pump

1. Company profile:

Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd .our factory is one of China leading company of sand & gold& diamond mining equipments. has more than 25 years' experience in designing.producing.selling cutter suction dredger. jet suction dredger. bucket chain dredger. diamond/gold dredgers. sand washing plant. gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Afrrica.South America.Middle Easr and other regions.
As for more information about our company and products,Please serach https://dredgerfactory.en.made-in-china.com

380ton Made 32 Inch Cutter Suction Dredger with Underwater Pump and Cumins Diesel Engine

2. Cutter suction dredger introduce :

Cutter Suction Dredgers are of the highest possible quality. ensuring a long lifetime with a minimum of maintenance. The maxmum
capacity of 32 inch dredger can reach to from 1800-2700 m3 water flow can go up to 9000 m³/h, and digging depth to 1-25 meters, discharge distance to 200-3000 meters.

The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging
engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to
allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection disconnection
system for the pontoons, achieved using bolts at deck level, hull front and rear , and hooks at the bottom. Further salient
features of the dredger are the dredger is powered by a Marine engine. the main engine is to drive the dredge pump and
hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the
spud rams etc.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations.
The side pontoons are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ) .

3. 32 inch cutter suction dredger parameter:

Total length	46m
Hull size	3510.22.7m
Discharge pipe diameter	800mm
Water flow	9000m3/h
solid capacity	1350m3-1800m3
Discharge distance	1500m
Cutter head diameter	2400mm
Cutter head power	450kw
Draught	1.6m
Displacement	477ton
Total weight	380ton
Main engine power	Cumins 2427kw
Auxiliary engine power	Cumins 736kw
Total fuel consumption	547 litre
Hydraulic control system	Rexroth
Electric control system	Siemens PLC

4. Product advantage :

1	Relable and high efficiency-improtant device is international brand
2	After sales service -engineer in the working site for installation and training ,24/7 technical support .
3	Provide free spare part for a year. then cost to offer service and spare part
4	Can dismantled and easy transportation

5.our service :

Set Sail Services intends to provide added value to a Set Sail vessel. whether this involves a single service or
a complete package such as integrated logistics support or a long-term service agreement.

6. Certification:

7. other information : 380ton Made 32 Inch Cutter Suction Dredger with Underwater Pump and Cumins Diesel Engine

8. why choose Set Sail cutter suction dredger :

A wide range of use applications
High efficiency, large output, far pump distance, low fuel consumption
Full hydraulic control with Rexroth, Vickers
Siemens PLC operation with the operation convenience
Engine choice from Weicchai, Cumins, Caterand more.
The modular design enables fast assembly with Set Sail seniors engineers
Dredger components available in factories to allow short delivery times
Control the working process of dredging and pumping, delivering dredged materials. lower cost;
Follow manufacture guideline: CCS-ZC standard
CE certificates acquired to prove high quality
Western Dredge brand parts, easy to find globally
Can choose reliable Chinese brand parts to lower costs
Gain access to our sales team, design team, manufacture team 24/7
Lifetime Technical Assistance
Optional equipment is available such as Spud carriage, anchor boom.

9.FAQ:
Q1: Is Set Sail a reliable company?
Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is located in Qingzhou City, Shandong Province, is a high-tech enterprise focusing on the investment, consultation, designing, manufacturing, assembly and operation management of environmental protection projects and machinery with more than 20 years' experience. Our factory covers 6000 m2 and has more than 100 employees.

Q2: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual requests.
Set Sail always has various dredgers, aquatic weed harvesters etc. in stock. Spare parts are available too. Thus the delivery time can be shortened.

Q3: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.

Q4: What's the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.

Q5: Why choose Set Sail company?
We are factory, so we can design and manufacture the suitable dredger, water cleaning boat, mining machinery according to clients' requirements, and our equipment have good quality and competitive price.
