26 Inch Cutter Suction Dredger with Cummins Generator and 350L Total Fule Consumption

Model NO. : QHCSD-338

Slot Type : CTN

Customized : Customized

Condition : New

Warranty : 2 Year

After-sales Service : Lifelong

Diesel Engine Brand : Cummins . Weichai

Hydraulic System Brand : Rexroth

PLC System Brand : Siemens

Water Flow : 6000 Cubic Meter

Capacity : 900-1200 Cubic Meter

Maximum Dredging Depth : 20 Meter

Maximum Discharge Distance : 2000 Meter

Total Length : 39 Meter

Hull Size : 28*8.8*2.25 Meter

Discharge Pipe Inner Diameter : 600mm

Cutter Head Diameter : 2000mm

Cutter Head Power : 260kw

Main Engine Power : 1620 Kw

Auxiliary Engine Power : 405 Kw

Total Fule Consumption : 350L

Transport Package : Canvas and Container

Specification : 26 inch cutter suction dredger

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 1900.00cm * 380.00cm * 220.00cm

Package Gross Weight : 36000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 4000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

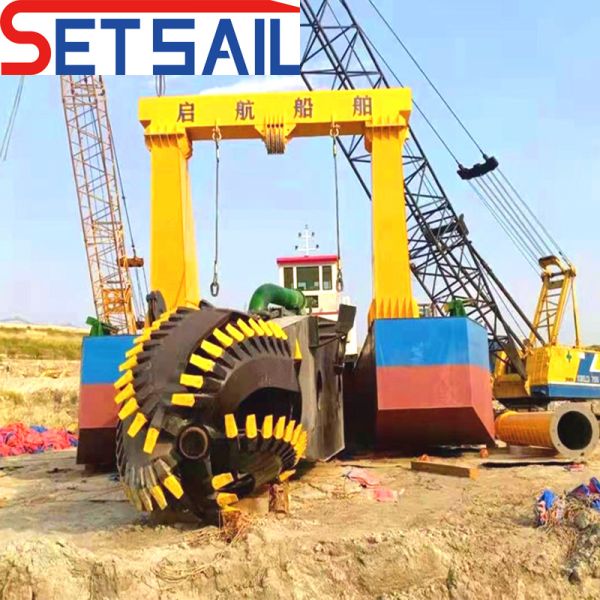

Full new 26 inch cutter suction dredger with Cummins generator

26 Inch Cutter Suction Dredger with Cummins Generator and 350L Total Fule Consumption

Set Sail cutter suction dredger's (CSD) suction tube has a cutting mechanism at the suction inlet. The cutting mechanism loosens the bed material and transports it to the suction mouth. The material is usually sucked up by a wear-resistant centrifugal pump and discharged either through a pipe line or to a barge. Cutter suction dredgers are most often used in geological areas consisting of hard surface materials (for example gravel deposits or surface bedrock) where a standard suction dredger would be ineffective. They can be used instead of underwater blasting.

Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together)

Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

Technical Specification

Item Name	Descriptions /Specifications
Clear water flow per hour	5000 cubic meter
Production Capacity (solid)	750-1000 cbm/hr for medium sand at a distance of 2000 m.
Slurry concentration, %	Min 15%, Max 20%
Discharge distance (max)	Max 2000 m
Dredging depth at 45 degree 45	15 m
Min. dredging depth	1.4m
Inner Diameter of suction pipe	700mm
Inner Diameter of discharge pipe	600mm
Average Draught	1.25m
Maximum draught	1.5m
Total weight	230Ton
Main engine power	1620kw
Auxiliary engine power	405kw
Total installed power	2025KW
Fuel tank capacity	60Ton
Delivery time	100days

Our services

1	Design the dredger based on the customer's detailed requirements such as : clear water flow per hour. dredge depth. discharge distance and engine brand we can support WeichaiCummins and others.
2	supply one year's guarantee for the whole dredger except the wear spare parts.
3	supply after-sales installation. trial operation. training the operators. maintence and other services.
4	we can offer the lifetime cost price accessories and technical support

Company Information

Qingzhou Qihang Dredging Machinery Equipment Co., Ltd , is one of China leading company of sand & gold& diamond mining equipments. which has more than 20 years' experience in producing cutter suction dredgers.jet suction dredgers.bucket chain dredger. diamond/gold dredgers. sand washing plant. dry land gold washing plant, sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Africa.South America.Middle East and other regions.

certificate and customers

26 Inch Cutter Suction Dredger with Cummins Generator and 350L Total Fule Consumption

FAQ:
Q1: Is Set Sail a reliable company?
Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is located in Qingzhou City, Shandong Province, is a high-tech enterprise focusing on the investment, consultation, designing, manufacturing, assembly and operation management of environmental protection projects and machinery with more than 20 years' experience. Our factory covers 6000 m2 and has more than 100 employees.

Q2: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual requests.
Set Sail always has various dredgers, aquatic weed harvesters etc. in stock. Spare parts are available too. Thus the delivery time can be shortened.

Q3: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.

Q4: What's the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.

Q5: Why choose Set Sail company?
We are factory, so we can design and manufacture the suitable dredger, water cleaning boat, mining machinery according to clients' requirements, and our equipment have good quality and competitive price.
