9000m3 Cutter Suction Dredger with Hydraulic Control and 800mm Suction Pipe Diameter

Model NO. : QHCSD-146

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 1 Year

After-sales Service : Lifelong

Dredging Depth : 18m

Discharge Distance : 2000m

Soild Capacity : 1800m3

Load Draft : 1.6m

Total Length : 46m

Total Width : 10.2m

Total Depth : 2.7m

Pump Water Flow : 9000m3

Head : 57m

Suction / Discharge Pipe Diameter : 800mm

Main Engine : Cummins 1950kw

Rotate Speed : 1900 R/M

Auxiliary Engine Power : 700 Kw

Cutter Head Power : 450kw

Cutter Head Diameter : 2400mm

Transport Package : Canvas and Container

Specification : Maximum capacituy 6000m3/h

Trademark : Set Sail

Origin : China

HS Code : 8905100000

Supply Ability : 2500set /Year

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 100000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Hydraulic control water flow 9000m3 cutter suction dreger for sale

1. 26 inch cutter suction dredger parameter :

Item	Parameter	Remark
Dredging depth	18m	Add undereater pump can reach the 30meter
Solid capacity	1800m3	According to 20% concentration to count
Discharge distance	2000m	Add the booster station can reach the long distance transportation
Load draft	1.6m
Total weight	380t
Toal length	46m
Total width	10.2m
Total depth	2.7m	it means the dimension is from bottom to the deck
Bottom plate thickness	14mm	CCS Standard
Front and back plate thickness	20mm
Side plate thickness	12mm
Deck plate thickness	12mm
Pump brand	Shijiazhuang industrial pump factory	According to the customer's request to choose the brand
Water flow	9000m3	we can do the over 20000m3 cutter suction dredger
Head	57m
Rotate speed	400r/m
Efficiency	81.50%
Suction /Discharge pipe diameter	800mm	Diameter is not changeless according to the anthentic situation to choice .
Main engien brand and power	Cummins 1950kw	Can provide CAT .Weichai so on diesel engine brand
Rotate speed	1900r	Rotate speed is adjustable
Auxiliary diesle engine and brand	Cummins 700kw	Can provide CAT .Weichai so on diesel engine brand
Driving Pump and hydraulic system gerbox Brand	Hangzhou Fada
Sup diameter *wall thickness	860mm*25mm
Weight	26ton
Lifting winch first layer pull	200KN
Wire rope diameter	28mm
Swing winch first layer pull	150KN
Wire rope diameter	26mm
Anchor boom length	18m
Spud carriage stroke	6m-8m
Spund carriage pontoon length	12m

2. Cutter suction dredger shows :
9000m3 Cutter Suction Dredger with Hydraulic Control and 800mm Suction Pipe Diameter

3. Set sail cutter suction dredger feature :

1	A wide range of use applications. General used for river. lake .sea .reservoir .and inland waterway so on
2	Full hydraulic control with Rexroth. Vickers . all brand from the abroad .
3	Siemens PLC operation with the operation convenience.modular control all data in the one place.
4	Dredger components available in factories to allow short delivery times . all conponents is tested serious .
5	Follow manufacture guideline: CCS-ZC standard .all process can reach the international standard.
6	Western Dredge brand parts. easy to find globally . All the accessories have overseas service points
7	Optional equipment is available such as Spud carriage, anchor boom. underwater pump so on .
8	Gain access to our sales team. design team. manufacture team 24/7. help the customers solves failure in time.
9	The modular design enables fast assembly with seniors engineers .

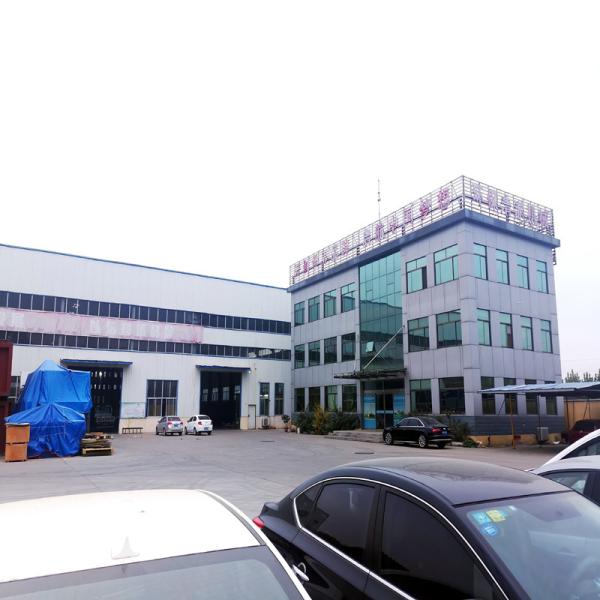

4.About Set Sail dredger factory:

1	30 years' dredger manufacture workmanship. especially large water flow dredger field .
2	Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger.
3	Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service .
4	6 manufacture shops .R&D center, testing pool.
5	Large production. ISO 9001 2015 quality system. CE certification so on .
6	Presences more than 40 countries.

5. Certification :

6.FAQ:
Q1: Is Set Sail a reliable company?
Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is located in Qingzhou City, Shandong Province, is a high-tech enterprise focusing on the investment, consultation, designing, manufacturing, assembly and operation management of environmental protection projects and machinery with more than 20 years' experience. Our factory covers 6000 m2 and has more than 100 employees.

Q2: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual requests.
Set Sail always has various dredgers, aquatic weed harvesters etc. in stock. Spare parts are available too. Thus the delivery time can be shortened.

Q3: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.

Q4: What's the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.

Q5: Why choose Set Sail company?
We are factory, so we can design and manufacture the suitable dredger, water cleaning boat, mining machinery according to clients' requirements, and our equipment have good quality and competitive price.
